Right Shift Instruction

I spent quite a long time thinking about how to implement this instruction. The strategy I eventually came up with is to add 1 to the register file address during the read phase of each bit time. So it reads bit 1 and writes it to bit 0, reads bit 2 and writes it to bit 1, etc. A fair bit of extra circuitry will be required to achieve this, and I don't really like the idea of adding that much complexity just to support one operation, but I haven't been able to think of a simpler way without radically changing the whole design.

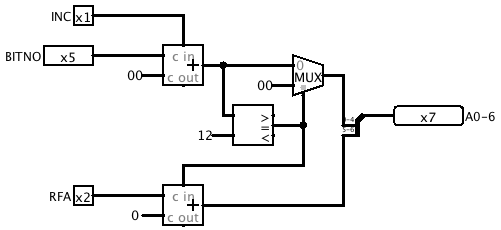

This is the subcircuit I designed to carry out the address incrementing. When the INC input is activated, a 5-bit adder adds 1 to BITNO. If the result is 18 (0x12) the result is forced to zero and a carry is added to RFA.

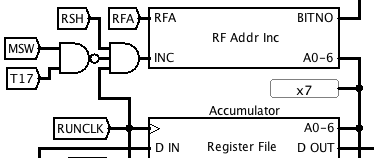

Here's where it fits into the main circuit. A new control signal RSH enables right-shifting behaviour. It is gated with RUNCLK so that the register file address is incremented during the read phase of each bit time. Incrementing is disabled during T17 of the most significant word, so that the most significant bit is unaltered. This makes the operation an arithmetic shift (i.e. with sign extension).

Microcode

This is the microcode for the right shift instruction. It uses the same technique as the left shift for keeping track of the number of places to shift.

# OPCODE L STAT : FETCH MASEL SHS EOI RFA WRF XSEL YSEL  CMX SS1 CY1 CYP ODD MSW LSW HALT WMEM UBCOND UBADDR RSH

# R - Right shift
   00100 x 0001 :   0     0    0   0   00  10   10   00   0   0   0   0   0   0   1   0    0    000    0000   1
   00100 x 0010 :   0     0    0   0   10  10   10   00   0   0   0   0   0   0   0   0    0    000    0000   1
   00100 x 0011 :   0     0    0   0   01  10   10   00   0   0   0   0   0   0   0   0    0    000    0000   1
   00100 x 0100 :   0     0    0   1   11  10   10   00   0   1   0   0   0   1   0   0    0    100    1000   1

Glitches, Will Robinson!

Testing in Logisim revealed a problem with this arrangement. Previously, the register address only changed on the rising edge of BITCLK, and was stable at the leading edge of the WRITE signal to the register file, but now the register address can also change on the falling edge of BITCLK. This was causing spurious bits in the accumulator to change.

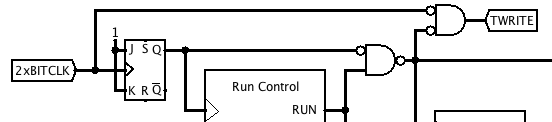

To fix this, I changed the clocking arrangement. The simulation is now clocked at twice the BITCLK rate, and a timing signal TWRITE is derived that is active during the last quarter of each bit period. This is used to gate the WRF1-WRF3 signals, which delays writing to the register file until a quarter of a bit period after any potential address change.

Revised register file timing:
