Transfer Instructions
The two Transfer instructions, T and U, transfer the contents of the
accumulator to the main memory. The difference between them is that T
also clears the accumulator, whereas U does not.
These are the first instructions we've implemented so far that write to
main memory, so we need a new control signal, WMEM. This is gated with
phase 2 of the bit clock so that writing to memory occurs only during
the write phase of each bit time.

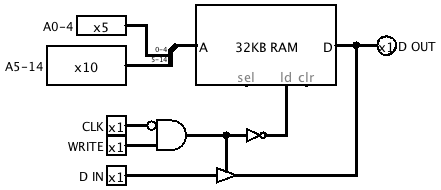

Updated main memory subcircuit:
I also made a change to the data path in the main circuit. Instead of
the data input to the main memory coming from the output of the ALU, it
now comes from the multiplexer feeding the X input of the ALU. This
will enable me to clear the accumulator at the same time as writing it
to main memory for implementing the T instruction.

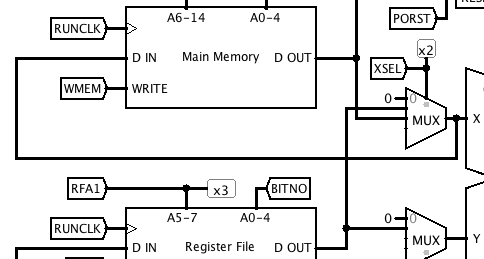

Revision to the main circuit:
Microcode
The T instruction selects the accumulator as the source for both inputs
to the ALU, and enables writing to memory. It also sets the ALU to
perform subtraction, thereby subtracting the accumulator from itself,
giving zero, and writes this back to the accumulator.
The U instruction simply selects the accumulator as the X input and writes it to memory.
# OPCODE L STAT : FETCH MASEL SHS EOI RFA1 WRF1 XSEL YSEL CMX AND CY1 CYP ODD MSW LSW HALT WMEM
# T - Transfer and clear
00101 0 0001 : 0 1 0 1 110 1 10 10 1 0 1 0 0 1 1 0 1
00101 1 0001 : 0 1 0 0 010 1 10 10 1 0 1 0 0 0 1 0 1
00101 1 0010 : 0 1 0 1 110 1 10 10 1 0 0 1 1 1 0 0 1
# U - Transfer without clear
00111 0 0001 : 0 1 0 1 110 0 10 00 0 0 0 0 0 0 0 0 1
00111 1 0001 : 0 1 0 0 010 0 10 00 0 0 0 0 0 0 0 0 1
00111 1 0010 : 0 1 0 1 110 0 10 00 0 0 0 0 1 0 0 0 1
